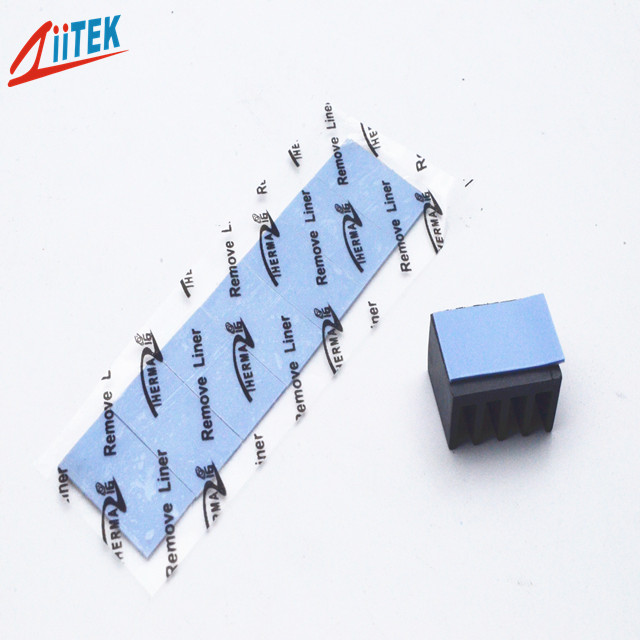

3.0 W/Mk Blue Thermal Gap Pad Outstanding Thermal Performance For Routers

Name: 30 WMk Blue Thermal Gap Pad Outstanding Thermal Performance For Routers
Brand: ZIITEK
Price: 1 USD

Buy cheap 3.0 W/Mk Blue Thermal Gap Pad Outstanding Thermal Performance For Routers product

Brand Name : ZIITEK

Model Number : TIF1200-30-05US

Certification : UL and RoHs

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Supply Ability : 100000pcs/day

Delivery Time : 3-5 work days

Packaging Details : 1000pcs/bag

keyword : thermal gap pad

Continuos Use Temp : -40 to 160℃

Thickness : 5.0mmT

name : 3.0 W/mK Blue Thermal Gap Pad Outstanding thermal performance for Routers

Dielectric Breakdown Voltage : 94 V0

Volume Resistivity : 1.0X1012 Ohm-cm

Contact Now

3.0 W/mK Blue Thermal Gap Pad Outstanding thermal performance for Routers

The TIF1200-30-05USis a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

TIF100-30-05US-Series-Datasheet.pdf

Features

> Good thermal conductive: 3.0 W/mK

>Thickness:5.0mmT

>hardness:18 shore 00

>Colour: blue

>Soft and compressible for low stress applications

>Naturally tacky needing no further adhesive coating

>Available in varies thicknesses

Applications

>Waterproof LED Power

>SMD LED module

>LED Flesible strip, LED bar

>LED PanelLight

>LED floor light

>Routers

Typical Properties of TIF1200-30-05US Series
Color	blue	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	3.0g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	5.0mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	18 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Outgasing (TML)	0.35%	ASTM E595	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.0 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	3.0 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

3.0 W/Mk Blue Thermal Gap Pad Outstanding Thermal Performance For Routers

FAQ:

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
