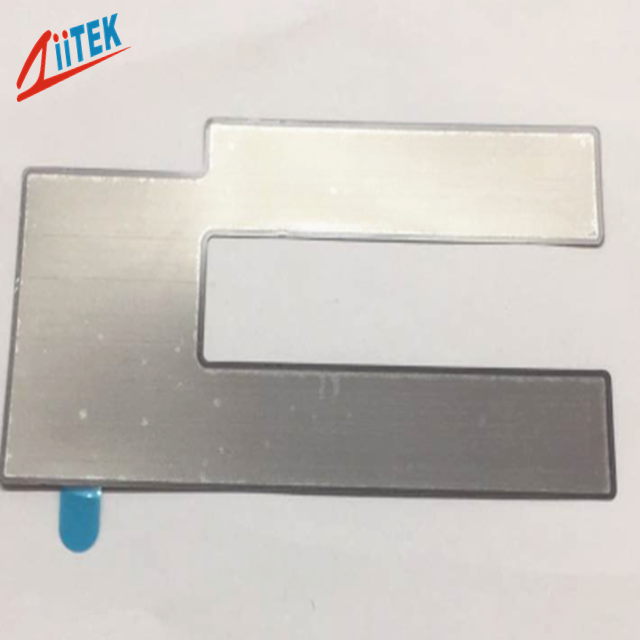

RoHs Approval Pyrolytic 85 Shore A 1200 W/m-K Graphite Sheet / Graphite Thermal Pad TIR™ 340 -40℃ ～400℃

Brand Name : ziitek

Model Number : TIR™ 340

Certification : RoHs

Place of Origin : China

MOQ : 100pcs

Delivery Time : 2-3 work days

Packaging Details : 1000pcs/bag

Colour : Black

Material : Synthetic graphite

Hardness : 85 Shore A

Operation Temperature : -40℃ ～400℃

Volume Resistivity : 3.2X103 Ohm-meter

Contact Now

RoHs Approval Pyrolytic 85 Shore A 1200 W/m-K Graphite Sheet / Graphite Thermal Pad TIR™ 340 -40℃ ～400℃



TIR™ 340 Series products are high performance thermal conductive interface materials. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus maximizes the ability of heat conduction.



TIR300 Series Datasheet-(E).pdf



Feature


Easy to assemble
Ultra-thin type
RoHS Compliant
Thermal Conductivity: 240 to 1700W/mK
Reduce hot spots and protect sensitive areas
Light weight
Flexible
Ease of manufacturing for high volume production



Application



PDP,LCD TV
Laptop,Notebook,Projector
Mobile phone
Automotive electronics
displays, lighting, telecom
Hand‐held devices
Set top box
LED Power Supply
LED Controller
LED Lights
LED Ceilinglamp
Monitoring the Power Box
AD-DC Power Adapters
Rainproof LED Power Supply
Waterproof LED Power Supply
Piranha wroof and common lED module
LED module for Channelletters
SMD LED module
LED Flesible strip, LED bar



RoHs Approval Pyrolytic 85 Shore A 1200 W/m-K Graphite Sheet / Graphite Thermal Pad TIR™ 340 -40℃ ～400℃



Typical Properties of TIRTM300 series
Product Name TIRTM312 TIRTM317 TIRTM325 TIRTM332 TIRTM340 Test Method
Colour Black Visual
Material Synthetic graphite 　
Thickness 0.012 mm 0.017 mm 0.025 mm 0.035 mm 0.040 mm ASTM D751
Thickness Tolerance +/- 10% +/- 10% +/- 10% +/- 10% +/- 10% ASTM D751
Density 1.9 g/cc 2.0 g/cc 1.8 g/cc 1.9 g/cc 1.8 g/cc ASTM D297
Hardness 85 Shore A ASTM D2240
Operation Temperature -40℃ ～400℃ *****
Volume Resistivity 3.2X103 Ohm-meter ASTM D257
Typical Thermal Conductivit (In Z axis) 4.2W/m-K 5.0W/m-K 6.0 W/m-K 8.0 W/m-K 12 W/m-K ASTM D5470
Typical Thermal Conductivity (In X-Y axis) 1600 W/m-K 1700 W/m-K

1500

W/m-K

1400

W/m-K

1200

W/m-K

 *****
Thermal Resistance @100psi 0.028
In²℃/W		 0.030
In²℃/W		 0.035
In²℃/W		 0.045
In²℃/W		 0.060
In²℃/W		 ASTM D5470



Standard Sheets Sizes :

1. 185mm x 220mm 2. 195mm x 240mm 3. 220mm x 320mm

TIR™ 300 series Individual die cut shapes can be supplied..

Consult the factory alternate thickness.
