2 W/m-K Silicone Rubber Thermal Gap Filler For Automotive Engine Control Units45 Shore 00 TIF100-20-02s
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.
Our vast experience allows us to assist our customers best in thermal engineering field.
We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
The TIF100-20-02S is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF100-20-02S is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Features:
> Good thermal conductive: 2.0 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:

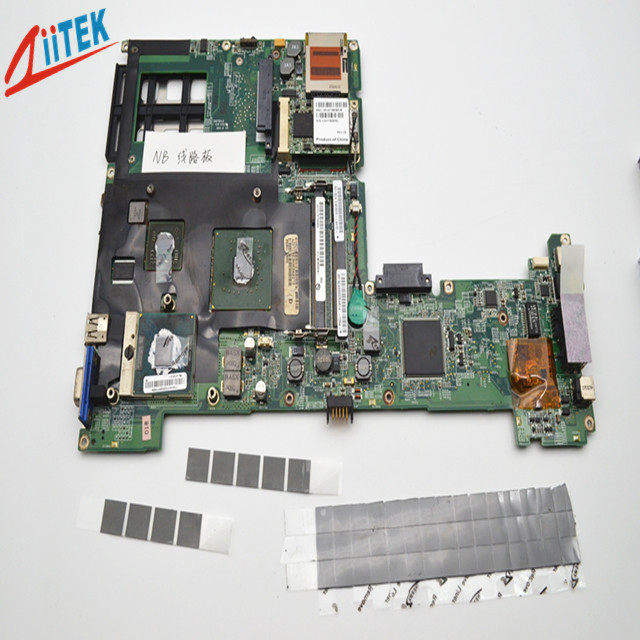

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
| Typical Properties of TIF™100-20-02S Series |
| Color | gray | Visual | Composite Thickness | hermalImpedance
@10psi
(℃-in²/W) |
| Construction &
Compostion | Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.21 |
| 20mils / 0.508 mm | 0.27 |
| Specific Gravity | 2.01 g /cc | ASTM D297 | 30mils / 0.762 mm | 0.39 |
| 40mils / 1.016 mm | 0.43 |
| Heat Capacity | 1 l /g-K | ASTM C351 | 50mils / 1.270 mm | 0.50 |
| 60mils / 1.524 mm | 0.58 |
| Hardness | 45 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 0.65 |
| 80mils / 2.032 mm | 0.76 |
| Tensile Strength | 40 ps | ASTM D412 | 90mils / 2.286 mm | 0.85 |
| 100mils / 2.540 mm | 0.94 |
| Continuos Use Temp | -40 to 160℃ | *** | 110mils / 2.794 mm | 1.00 |
| 120mils / 3.048 mm | 1.07 |
| Dielectric Breakdown Voltage | >1500～>5500 VAC | ASTM D149 | 130mils / 3.302mm | 1.16 |
| 140mils / 3.556 mm | 1.25 |
| Dielectric Constant | 5.5 MHz | ASTM D150 | 150mils / 3.810 mm | 1.31 |
| 160mils / 4.064 mm | 1.38 |
| Volume Resistivity | 6.3X1012Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 1.43 |
| 180mils / 4.572 mm | 1.50 |
| Fire rating | 94 V0 | equivalent UL | 190mils / 4.826 mm | 1.60 |
| 200mils / 5.080 mm | 1.72 |
| Thermal conductivity | 2.0 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)

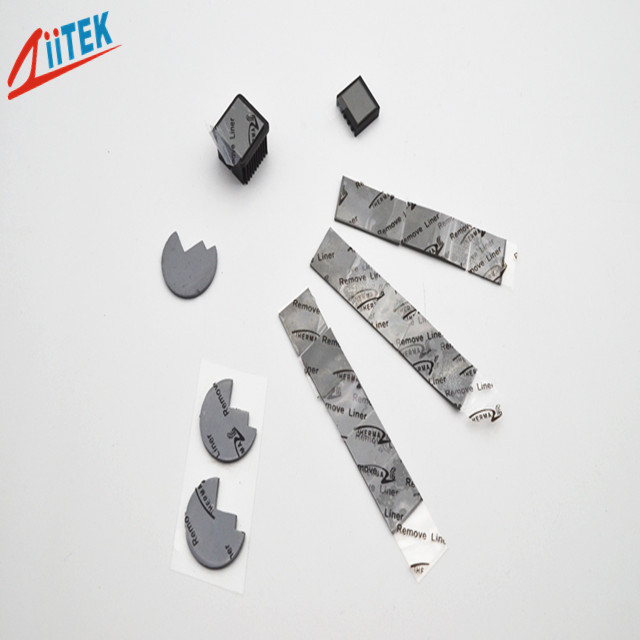

TIF™ series Individual die cut shapes can be supplied.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
