Self-Adhesive Silicone 1mm T Thermal Gap Pad 45 Shore 00 TIF140-02S for LED Bulb Lights

Name: SelfAdhesive Silicone 1mm T Thermal Gap Pad 45 Shore 00 TIF14002S for LED Bulb Lights
Brand: ZIITEK
Price: 1 USD

Buy cheap Self-Adhesive Silicone 1mm T Thermal Gap Pad 45 Shore 00 TIF140-02S for LED Bulb Lights product

Brand Name : ZIITEK

Model Number : TIF140-02S

Certification : UL and RoHs

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Supply Ability : 10000/day

Delivery Time : 3-5work days

Packaging Details : 1000pcs/bag

Thermal conductivity& Compostion : 1.5 W/m-K

Specific Gravity : 2.01 g/cc

Heat Capacity : 1 l /g-K

Color : gray

Continuos Use Temp : -40 to 160℃

Hardness : 45 Shore 00

Contact Now

Wholesale self-adhesive silicone 1mmT thermal gap pad 45shore00 TIF140-02S for LED bulb lights

The TIF140-02S thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
Features:

> Good thermal conductive: 1.5 W/mK

> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

Applications:

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

Typical Properties of TIF™140-02S Series
Color	gray	Visual	Composite Thickness	hermalImpedance @10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	***	10mils / 0.254 mm	0.21
			20mils / 0.508 mm	0.27
Specific Gravity	2.01 g /cc	ASTM D297	30mils / 0.762 mm	0.39
			40mils / 1.016 mm	0.43
Heat Capacity	1 l /g-K	ASTM C351	50mils / 1.270 mm	0.50
			60mils / 1.524 mm	0.58
Hardness	45 Shore 00	ASTM 2240	70mils / 1.778 mm	0.65
			80mils / 2.032 mm	0.76
Tensile Strength	40 ps	ASTM D412	90mils / 2.286 mm	0.85
			100mils / 2.540 mm	0.94
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	1.00
			120mils / 3.048 mm	1.07
Dielectric Breakdown Voltage	>1500～>5500 VAC	ASTM D149	130mils / 3.302mm	1.16
			140mils / 3.556 mm	1.25
Dielectric Constant	5.5 MHz	ASTM D150	150mils / 3.810 mm	1.31
			160mils / 4.064 mm	1.38
Volume Resistivity	6.3X1012Ohm-meter	ASTM D257	170mils / 4.318 mm	1.43
			180mils / 4.572 mm	1.50
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.60
			200mils / 5.080 mm	1.72
Thermal conductivity	1.5 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

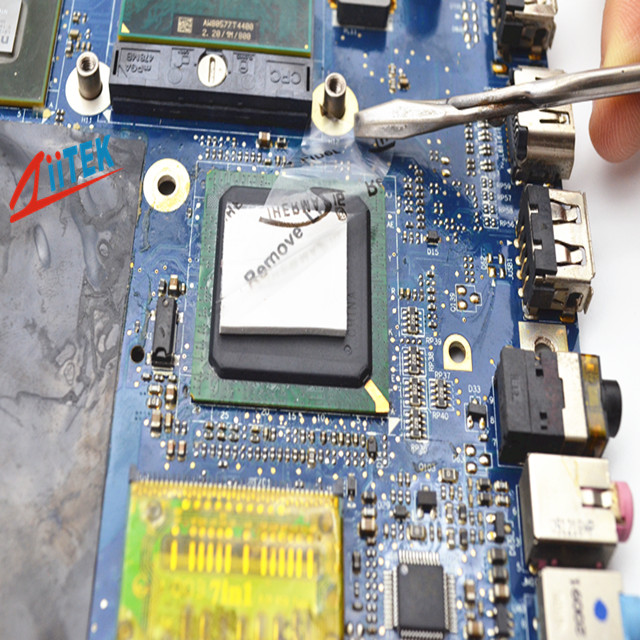

Self-Adhesive Silicone 1mm T Thermal Gap Pad 45 Shore 00 TIF140-02S for LED Bulb Lights

Standard Thicknesses:

0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
