Thermal Insulation Materials for Automotive Electronics 5.5 MHz Dielectric Constant

Name: Thermal Insulation Materials for Automotive Electronics 55 MHz Dielectric Constant
Brand: Ziitek
Price: 1 USD

Buy cheap Thermal Insulation Materials for Automotive Electronics 5.5 MHz Dielectric Constant product

Brand Name : Ziitek

Model Number : TIS118-05

Certification : RoHs and UL

Place of Origin : China

MOQ : 1000PCS

Supply Ability : 100000PCS/Day

Delivery Time : 2-3Word days

Packaging Details : 1000pcs/bag

Products name : Factory Sells Thermal Insulation Materials For Automotive Electronics

Color : Blue

Thermal conductivity : 1.0W/mK

Dielectric Constant : 5.5 MHz

Keywords : Thermal Insulation Materials

Specific Gravity : 1.72g/cc

Continuos Use Temp : -45 to 180℃

Hardness : 50 Shore 00

Thickness : 0.45mm

Contact Now

Factory Sells Thermal Insulation Materials For Automotive Electronics

The TIS™118-05 Series products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

TIS100-05 Series Datasheet-(E)-REV01.pdf

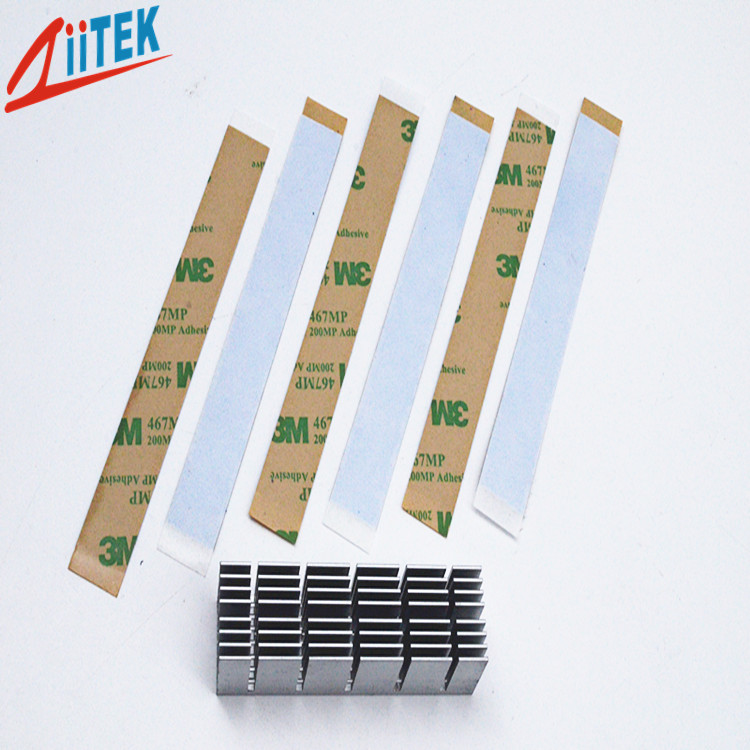

Thermal Insulation Materials for Automotive Electronics 5.5 MHz Dielectric Constant
Features

> Highly compliant surface characteristic with high thermal conductivity
> Available in varies thicknesses
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance

Applications

> Power supply
> Heat pipe thermal solutions
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics

Typical Properties of TIS100-05 series
Product Name	TIS109-05	TIS112-05	TIS118-05	Test Method
Color	blue			Visual
Construction &Compostion	Ceramic filled silicone elastomer / Fiberglass			*******
Composite Thickness	0.23mm	0.3mm	0.45mm	ASTM D374
Hardness	50 Shore 00			ASTM D751
Specific Gravity	1.72g/cc			ASTM D297
Tensile Strength	425 Kpsi			ASTM D412
Continuous Use Temp	-45 to 180℃			*******
Dielectric Breakdown Voltage	>3500 VAC			ASTM D149
Dielectric Constant	5.5 MHz			ASTM D150
Volume Resistivity	4.0X10¹³ Ohm-meter			ASTM D257
Flame Rating	94 V0			E331100
Thermal conductivity	1.0 W/mK			ASTM D5470

Standard Thicknesses:
0.o09"(0.228mm),0.012"(0.304mm),0.018"(0.457mm)

Consult the factory alternate thickness.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.

Request adhesive on doule side with "A2" suffix.

Standard Sizes:
12" x 160(304mm x 48.76M)
lndividual die cut shapes can be supplied.

Thermal Insulation Materials for Automotive Electronics 5.5 MHz Dielectric Constant

Company profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
