High Temperature Resistance 0.127mm Silicone Heating Insulation For Gpu Cpu Heatsink
The TIS®805-16-03 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.
Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures
> Easy release construction
> Electrically isolating
> High durability
Applications:
> Car Battery & Power Supply
> Power semiconductors
> Audio and Video components
> Motor controllers
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
| Typical Properties of TIS®805-16-03 Series |
| Property | Value | Test Method |
| Color | Yellow | Visual |
| Construction &Compostion | Ceramic filled silicone elastomer /Polyimide film | ****** |
| Thickness range | 0.005inch (0.127mm) | ASTM D374 |
| Tensile Strength(MPa) | 12 | ASTM D412 |
| Density | 2.4 g/cc | ASTM D297 |
| Continuos Use Temp | -60 to 180℃ | ****** |
| Breakdown Voltage(V/mm) | 3000 | ASTM D149 |
| Dielectric Constant @ 1MHz | 6.0 | ASTM D150 |
| Volume Resistivity | 1.0X1012 Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | UL(E331100) |
| Thermal conductivity | 1.6W/m-K | ASTM D5470 |
| Thermal impedance(℃-in²/W)@30psi | 0.5 | ASTM D5470 |
Standard Thicknesses
0.005inch (0.127mm)
Standard Sizes
12" x 160"(304mm x 48.76M)
The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.
Packaging Details & Lead time
The packaging of silicone insulation materials
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
|
|

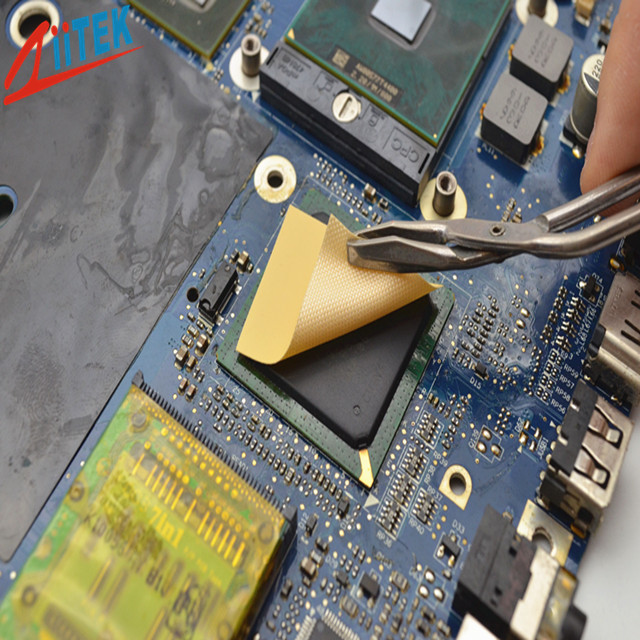

High Temperature Resistance 0.127mm Silicone Heating Insulation For Gpu Cpu Heatsink Images
|
